Menlo Park Office Complex in Garden Pathway, Stairs, & Topping Slab

Seamlessly Integrating with Natural Environment

Location: Menlo Park, California Dates Poured: September 2011 and April 2012

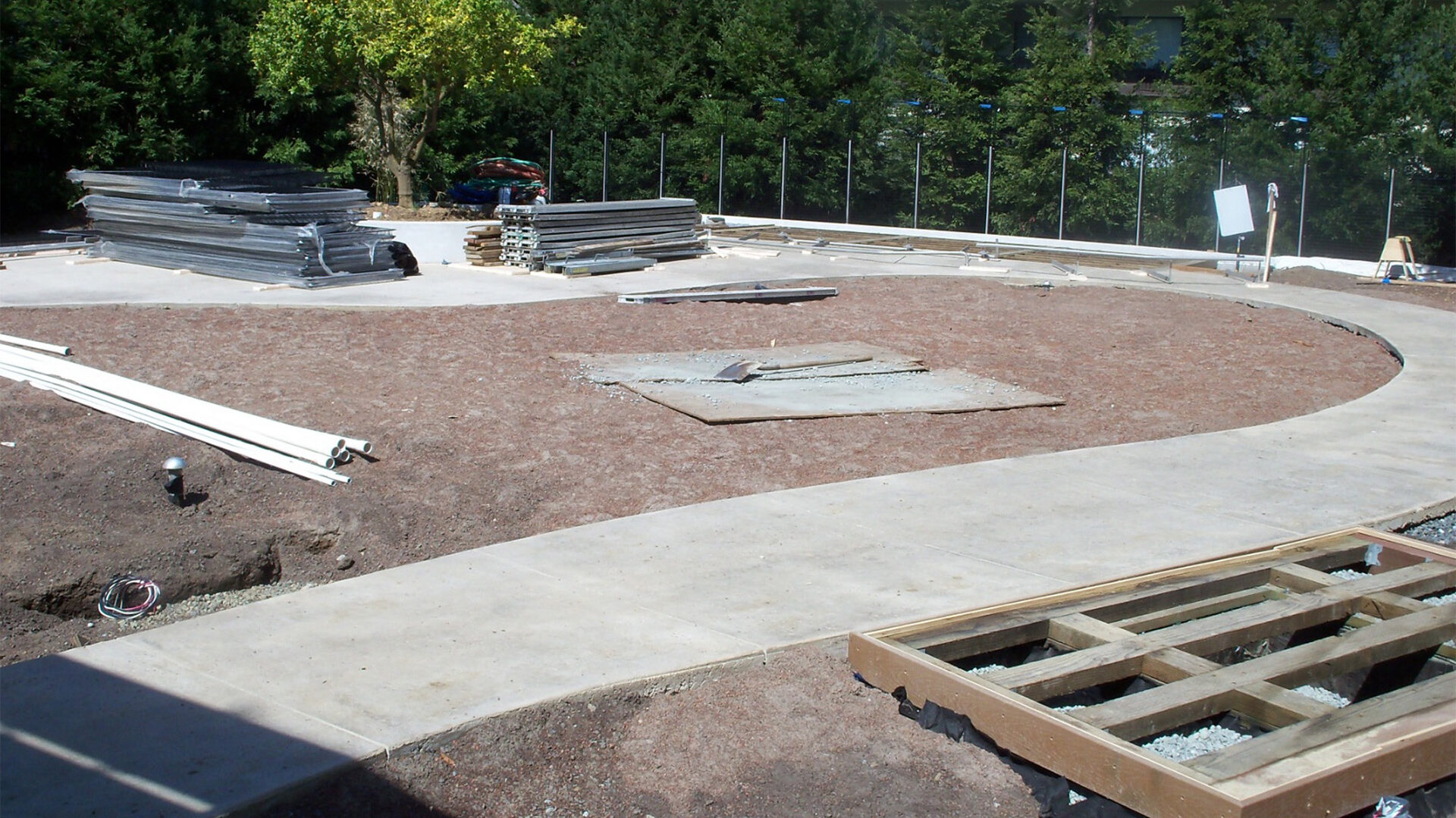

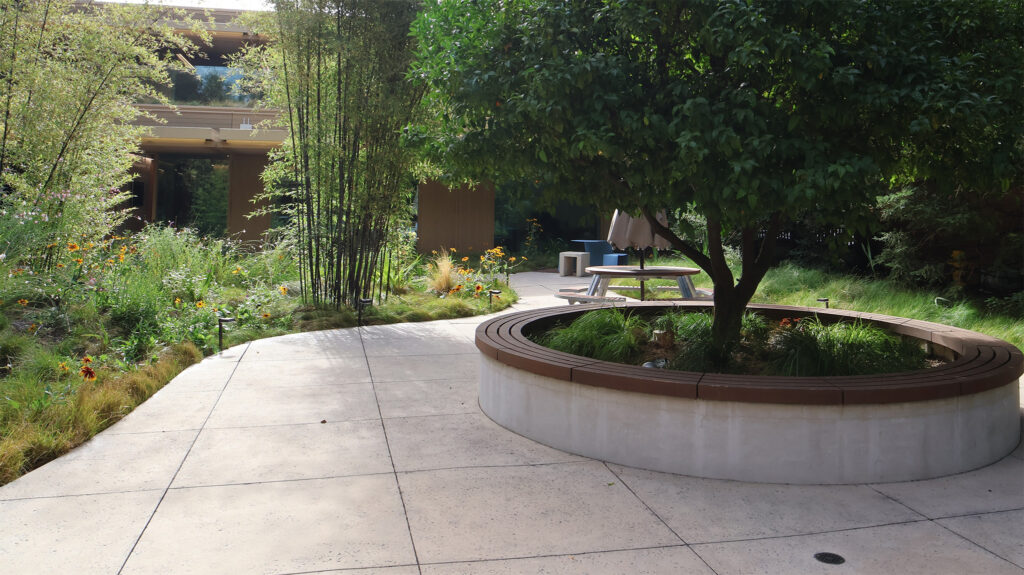

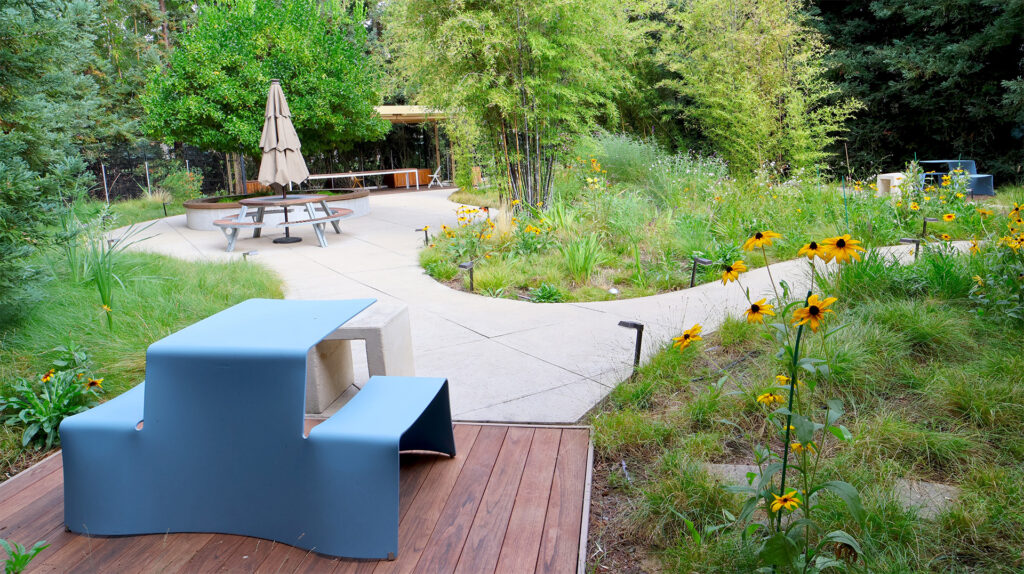

ReAct® Blend, a low CO<sub>2</sub> green cement solution, was selected to create a sustainable mix design for a multi-functional garden pathway. The project required decorative concrete that could seamlessly integrate with the garden’s natural beauty and withstand the traffic of company-hosted events and employee day-to-day retreat areas. ReAct® Blend was also used for two stair-wells in the office complex. The requirement was a modern, durable, high-traffic solution that would blend with the overall campus design aesthetic.

50.5 yd³

Concrete Poured Total (38.7 m³)

23%

CO₂ Reduction in Topping Slab

49%

CO₂ Reduction in Stairs & Pathway

Mix Design

Topping Slab
Cement: 71%
Slag: 20%
ReAct: 9%
Aggregate: 1/2″ Granite / Sechelt Sand Total Cementitious Material: 658 lb/yd³
W/CM: 0.45
Slump: 4″ (10.2 cm)
Air: Entrapped 2.5%
Design Strength: 5,000 psi (34.5 MPa)

Stairs & Pathway
Cement: 43%
Slag: 43%
ReAct: 14%
Aggregate: 3/4″ & 1/2″ Granite / Natural Sand Total Cementitious Material: 702 lb/yd³
W/CM: 0.45
Slump: 4″ (10.2 cm)
Air: Entrained 4%
Design Strength: 5,000 psi (34.5 MPa)
